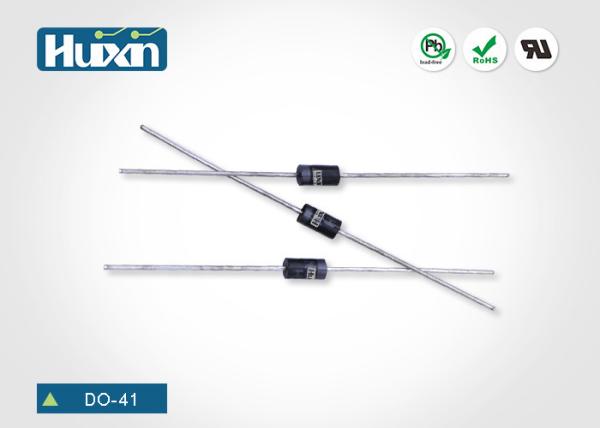

1.0 Amp Fast Recovery Rectifier Diodes 50 to 600 Volts SF16 DO-41

SF11~SF18 DO-41 Datasheet.pdf

​

• The plastic package carries Underwriters Laboratory Flammability Classification 94V-0
• Open Junction chip
• Low reverse leakage
• High forward surge current capability
• High temperature soldering guaranteed: 250 C/10 seconds at terminals

• Case : Molded plastic body
• Terminals : Solder plated, solderable per MIL-STD-750,Method 2026
• Polarity : Polarity symbol marking on body
• Mounting Position : Any
• Weight : 0.0088 ounce, 0.25 grams

Ratings at 25 C ambient temperature unless otherwise specified.Single phase half-wave 60Hz,resistive or inductive load,for capacitive load current derate by 20%.

Parameter																		SYMBOLS	SF11	SF12			SF13	SF14			SF15	SF16	SF17			SF18			UNITS
Maximum repetitive peak reverse voltage																		VRRM	50	100			150	200			300	400	500			600			V
Maximum RMS voltage																		VRMS	35	70			105	140			210	280	350			420			V
Maximum DC blocking voltage																		VDC	50	100			150	200			300	400	500			600			V
Maximum average forward rectified current at TL =100 C																		I(AV)	1.0																A
Peak forward surge current, 8.3ms single half sine-wave superimposed on rated load																		IFSM	30.0																A
Maximum instantaneous forward voltage at 1.0A																		VF	0.95								1.25		1.7						V
Maximum DC reverse current T A =25 C at rated DC blocking voltage TA=125 C																		IR	10.0 500																u A
Maxinum reverse recovery time(Note 1)																		Trr	35																ns
Typical junction capacitance (Note2)																		CJ	30.0																pF
Typical thermal resistance																		RqJA	65.0																C/W
Operating junction and storage temperature range																		TJ,TSTG	-55 to +150																C

Note: 1.Reverse recovery time test condition: IF=0.5A IR=1.0A Irr=0.25A
2.Measured at 1MHz and applied reverse voltage of 4.0V D.C.
