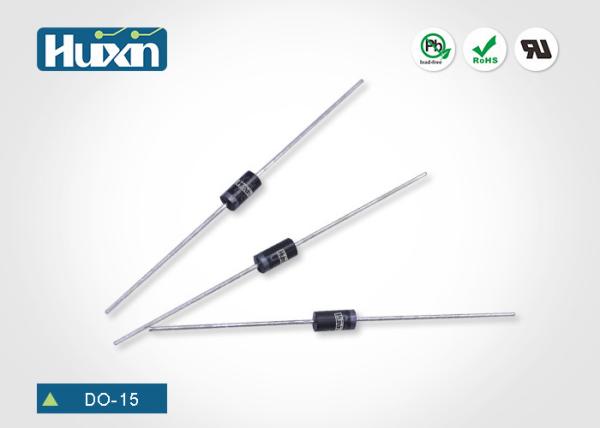

GLASS PASSIVATED SUPER FAST RECTIFIER VOLTAGE RANGE 50 to 400 Volts CURRENT 2.0 Amperes

SF21~SF28 DO-15 Datasheet.pdf

​

2.0Amp Super Fast Silicon Rectifiers

• The plastic package carries Underwriters Laboratory Flammability Classification 94V-0
• Open Junction chip
• Low reverse leakage
• High forward surge current capability
• High temperature soldering guaranteed:250 C/10 seconds at terminals

• Case : Molded plastic body
• Terminals : Solder plated, solderable per MIL-STD-750,Method 2026
• Polarity : Polarity symbol marking on body
• Mounting Position : Any
• Weight : 0.0116 ounce, 0.33 grams

Ratings at 25 C ambient temperature unless otherwise specified.Single phase half-wave 60Hz,resistive or inductive load,for capacitive load current derate by 20%.

Parameter																	SYMBOLS	SF21		SF22			SF23	SF24			SF25	SF26		SF27		SF28			UNITS
Maximum repetitive peak reverse voltage																	VRRM	50		100			150	200			300	400		500		600			V
Maximum RMS voltage																	VRMS	35		70			105	140			210	280		350		420			V
Maximum DC blocking voltage																	VDC	50		100			150	200			300	400		500		600			V
Maximum average forward rectified current at TL =100 C																	I(AV)	2.0																	A
Peak forward surge current, 8.3ms single half sine-wave superimposed on rated load																	IFSM	60.0																	A
Maximum instantaneous forward voltage at 2.0A																	VF	0.95									1.25			1.7					V
Maximum DC reverse current T A =25 C at rated DC blocking voltage TA=125 C																	IR	10.0 500																	u A
Maxinum reverse recovery time(Note 1)																	Trr	35																	ns
Typical junction capacitance (Note2)																	CJ	40.0																	pF
Typical thermal resistance																	RqJA	75.0																	C/W
Operating junction and storage temperature range																	TJ,TSTG	-55 to +150																	C

Note: 1.Reverse recovery time test condition: IF=0.5A IR=1.0A Irr=0.25A

2.Measured at 1MHz and applied reverse voltage of 4.0V D.C.
